Reolink E540 Surveillance Camera has a 5MP - Super HD resolution.
The main features of this surveillance camera are:.
Delivery date: Wednesday, 27.08.2025
With intelligent motion detection technology, this camera can distinguish between people and vehicles from other objects. Receive alerts when a person or car moves around your home or other monitored space. Unwanted alarms, such as those triggered by spiders or moving tree branches, are a thing of the past.
This PTZ (Pan/Tilt Zoom) camera allows you to view your area from any angle and automatically track a person/car in motion. The surveillance camera rotates 355° horizontally and 140° vertically and has a 3X Optical Zoom.
Note: It tracks the person/car left and right but not up and down.
You can choose either automatic tracking or manual tracking with the Pan/Tilt function.

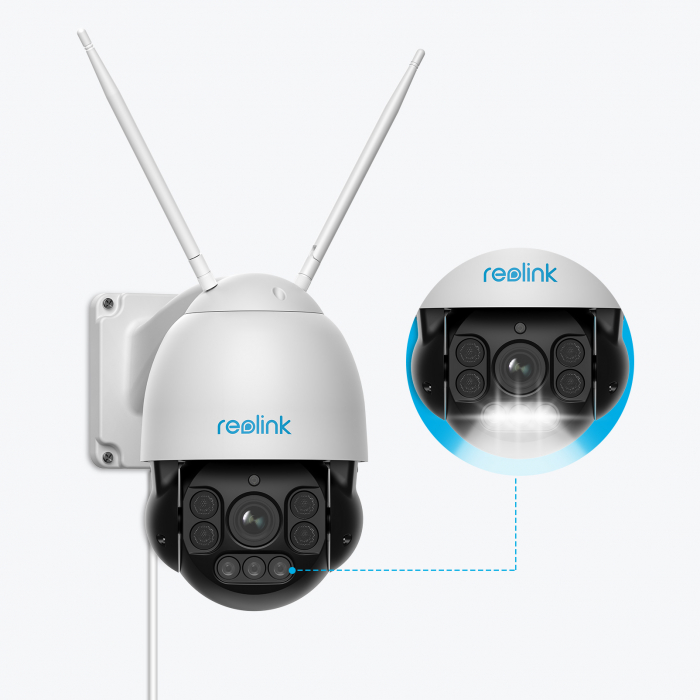

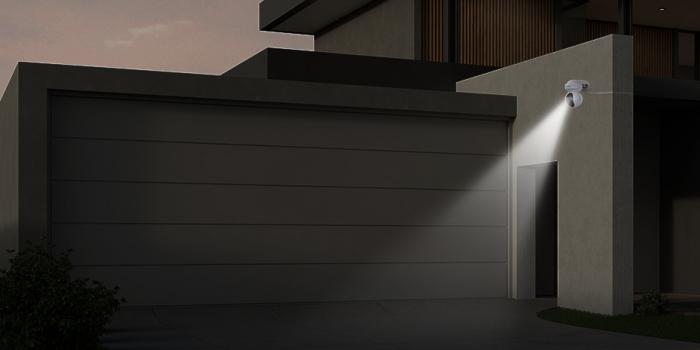

See everything in detail with SuperHD 5MP quality. With the LED spotlight and CMOS sensor, the Reolink E1 Outdoor E540 provides color video even after dark. You can see more valuable details to identify people, vehicles, and more objects.
Easily create time lapses of your favorite moments, such as the blooming of a flower. Not a second is lost in the evolution of the process you are interested in.
Attention! This feature is not available when the camera is connected to an NVR.
Helps you never miss what matters.
The video camera detects potential danger and alerts you by sending you real-time emails and, simultaneously, a notification on your mobile phone.
Save the captured images on an FTP server or the Micro SD card in the video camera (the card must be purchased separately).
The user can adjust the sensitivity of the motion sensor.
The user can also adjust the monitored area for which the motion detector is active.
No matter where you are or what device you have, as long as it's connected to the Internet, you can easily access your surveillance camera remotely and monitor your home or business in a very simple way:
Through the free app provided by the camera manufacturer, if the app is installed and configured on your mobile device;
Through the free app provided by the camera manufacturer, if the app is installed and configured on your computer with OS or Windows;
Through any Internet browser, without needing to install any plugin.
This surveillance camera provides excellent image quality at night. With 12 infrared LED lights, the camera has a night coverage area of up to 12 meters.

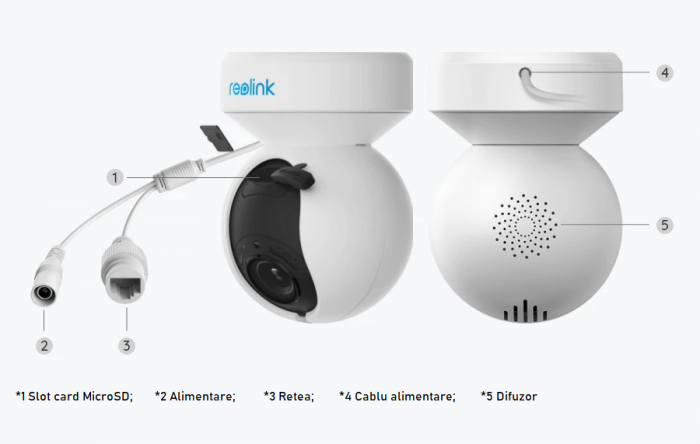

The surveillance camera is equipped with a slot for a Micro SD card, supporting cards with a maximum capacity of 256 GB. Using such a card offers the following benefits:
The maximum recording time varies depending on the frame rate and the capacity of the card used, offering flexibility based on storage needs.
The surveillance camera can be used both indoors (home, garage, shop, etc.) and outdoors, as it is resistant to weather conditions (rain, snow), meeting the IP 66 standard.
E540 Camera
Mounting Bracket
Fixing Strap
Mounting Template
Power Adapter
4.5m Extension Cable
1m Network Cable
QSC (Quality Certificate)
Surveillance Sticker
Screw Pack
Reset Needle
Additional Technical Specifications:
Image Sensor: 1/2.7" CMOS
Video Resolution: 2560 x 1920 (5.0 megapixels) at 20 frames/sec
Lens: f=2.8 - 8mm, F=1.6, with IR cut filter
Optical Zoom: 3X
Video Format: H.264
Viewing Angle:
Horizontal: 48°- 90°
Vertical: 37°- 68°
Pan/Tilt Angle:
Horizontal: 355°
Vertical: 50°
Infrared Night Vision: Up to 12 meters (LEDs: 12 pcs/14mil/850nm)
Color Night Vision: LED Projectors: 4 pcs/2.7W/6500K
Audio: Two-way communication (built-in microphone and speaker)
Power Supply: DC 12.0V⎓1A, power consumption <12W
Storage: Micro SD card slot (Max 256GB)
Frame Rate:
Mainstream: 2fps - 25fps (default: 20fps)
Substream: 4fps - 15fps (default: 10fps)
Bitrate:
Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps)
Substream: 64Kbps - 512Kbps (default: 256Kbps)
Supported Operating Systems:
PC: Windows, Mac OS
Smartphone: iOS, Android
Smart Alarm: Motion, person, vehicle, pet detection
Wireless Standards: IEEE 802.11a/b/g/n, 2.4GHz/5GHz
Wireless Security: WPA-PSK/WPA2-PSK
User Access: Maximum 20 users (1 admin account & 19 user accounts), supports up to 12 simultaneous video streams
Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)

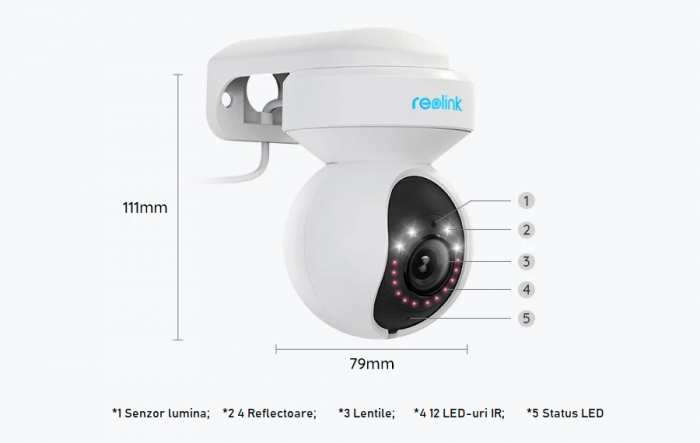

Dimensions: Φ85×118mm
Weight: 380g
Format senzor: 1/2.7'' CMOS
Rezolutie senzor (pixeli): 2560x1920 (5 Megapixels)
Rezolutie video (pixeli): Super HD
Interfata: Ethernet 10M/100Mbps RJ45; WI-FI
Microfon: Bidirectional (are microton si Difuzorului)
Management: Maxim 12 transmisiuni video simultane
Software inclus: Accesibil gratuit
Tip: Acces inteligent
Tehnologie: Detectie Persoana/Vehicul; Color Night Vision; Auto Tracking; PTZ
taxa_verde: Inclusa
LED indicators: 12pcs/14mil/850nm
Infrarosu: Distanta de vedere nocturna - pana la 12 meteri (40ft)
Stocare date: slot MicroSD (suporta max. 256GB)
Zoom Optic: 3X
Audio bidirectional: Da
Deschidere orizontala a ariei supravegheate: 355°
Utilizabila in Exterior: Da
Rezolutie megapixeli: 5MP
Unghi Vizualizare Orizontal/Vertical: 48°- 90° / 37°- 68°
Rata cadrelor: Principal: 2fps-25fps (default 20); secundar: 4fps-15fps (default 10fps)
Browsere acceptate: IE, Edge, Chrome, Firefox, Safari
Alarma Smart: Detectare Persoana; Detectare vehicul; detectare miscare.
Mod inregistrare: Inregistrare detectare miscare (default); Inregistrare programata; Inregistrare 24/7
Temperatura/Umiditatea de lucru: -10°C - +55°C / 20% - 85%
Standard de protectie: Waterproof
Standard wireless: IEEE 802.11 b/g/n
Frecventa de operare: 2.4 GHz/5GHz
Securitate wireless: WPA-PSK/WPA2-PSK
Vedere Nocturna Color: Pana la 12 meteri (Reflector: 4pcs/2.7W/6500K)
Compatibil Cu Google Assistant: Da
Alimentare: DC 12V 1A, <12W
Cadre pe secunda: 25
Protection class: IP65
Compresie audio: AAC
Compresie video: H.264
Dimensiuni: 8.5 x 8.5 x 11.8
Follow_no_follow: Yes
Greutate: 380
Lentile: f=2.8-8mm, F1.6, cu IR-cut
Memorie: Suporta max. 256GB microSD
Utilizatori maximi: Max. 20 utilizatori (1 admin + 19 useri)
Protocoale suportate: HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, FTP
Rata transfer: Main: 1024-8192Kbps, Sub: 64-512Kbps
Sisteme de Operare acceptate: Windows, Mac OS, iOS, Android
Securitate: WPA-PSK/WPA2-PSK
Unghi de inclinare: -
Zoom Digital: 3x
