Reolink E1 Outdoor E560 Surveillance Camera has a resolution of 8MP-4K
The main features of this surveillance camera are:
The Reolink E1 Outdoor E560 surveillance camera can be used both indoors and outdoors.
Delivery date: poimaine, 07.11.2025
With the help of smart motion detection technology, this camera can distinguish between people and vehicles from other objects. Receive alerts when a person or car moves around your house or other monitored space. False alarms, such as those triggered by spiders or moving tree branches, are a thing of the past.

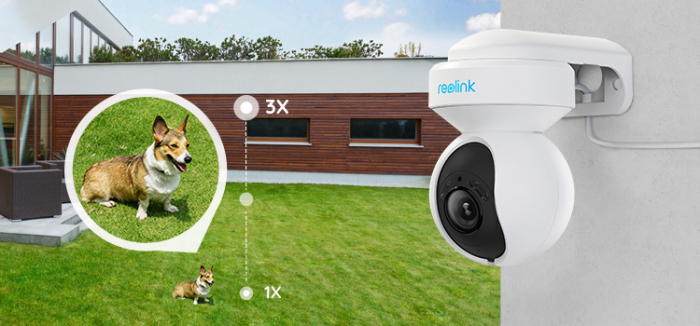

This PTZ (Pan/Tilt Zoom) camera allows you to view your area from any angle and automatically track the person/vehicle in motion. The surveillance camera rotates 355° horizontally and 50° vertically and has a 3X Optical Zoom.
Note: It tracks the person/vehicle left and right but not up and down.
You can choose both automatic and manual tracking with the Pan/Tilt function.

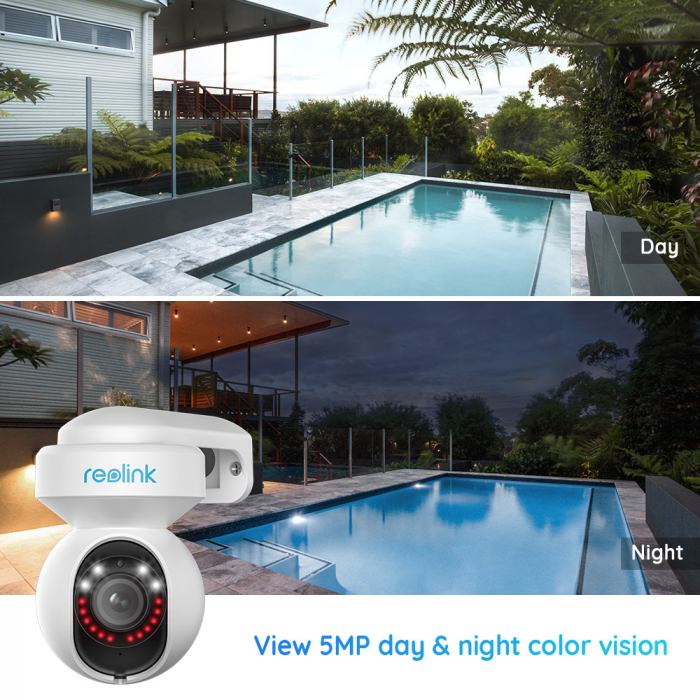

See everything in detail with 4K 8MP quality. With the LED spotlight and CMOS sensor, the Reolink E1 Outdoor E560 provides color videos even after dark. You can see more valuable details to identify people, vehicles, and other objects.

Easily create time-lapses of your favorite moments, such as a flower blooming. No second is lost in the process you’re interested in.
Attention! This feature is not available when the camera is connected to an NVR.

Never miss what matters.
The camera detects potential danger and alerts you by sending real-time email notifications and simultaneous push notifications to your mobile device.
Save captured images to an FTP server or the camera’s Micro SD card (card needs to be purchased separately).
The user can adjust the motion sensor sensitivity.
The user can adjust the specific area within the monitored zone for motion detection.



Wherever you are, and whatever device you have, if it’s connected to the Internet, you can easily access your surveillance camera remotely and monitor your home and business in a very simple way:
Via the free app provided by the camera manufacturer, if you have the app installed and configured on your mobile device;
Via the free app provided by the camera manufacturer, if you have the app installed and configured on your computer with OS or Windows;
Via any Internet browser, without the need for any plugins.

This surveillance camera provides very high-quality images collected at night. With its 12 infrared LED lights, the camera has a nighttime coverage area of up to 12 meters.

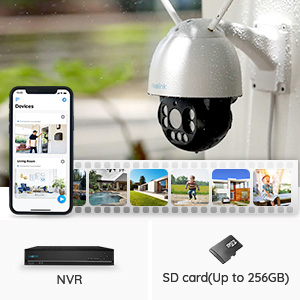

The surveillance camera is equipped with a slot for a Micro SD card (supports up to 256 GB). Using such a card provides the following benefits:
Record and save captured videos locally, without needing any external DVR/NVR device;
Access and play back previously saved video recordings from the card;
No subscription or additional costs, helping to save your budget.
This surveillance camera can be used both indoors (home, garage, store, etc.) and outdoors, being resistant to weather conditions (rain, snow) according to the IP 64 standard.

Additional Technical Specifications:
Image Sensor: 1/2.8" CMOS Sensor
Video Resolution: 3840x2160 (8.0 Megapixels) @ 20fps
Lens: f=2.8-8mm, Max: F1.6
Video Format: H.265
Field of View: Horizontal: 94° ~ 50°, Vertical: 53° ~ 30°
Day and Night: IR-Cut Filter with Auto-Switching
Infrared Night Vision: Up to 12 meters (40ft), 12pcs/1.6W/850nm LEDs
Color Night Vision: 4pcs/2.7W/6500K/180Lumens LEDs
Audio: Built-in Two-Way Audio (Microphone and Speaker)
Power: DC 12.0V⎓1A, <12W
Storage: MicroSD Card Slot (Max. 256GB)
Pan & Tilt: Pan: 355°, Tilt: 0°~50°, Supports Auto-Tracking
Wi-Fi: Dual-band, 2.4GHz & 5GHz, compatible with IEEE 802.11a/ac/ax/b/g/n
Wireless Security: WPA/WPA2/WPA3
Smart Detection: Motion/Person/Vehicle/Pet Detection
Smart Home Integration: Supports Google Assistant
Water Resistance: IP64, Suitable for Indoor/Outdoor Use
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Format senzor: 1/2.8'' CMOS
Rezolutie senzor (pixeli): 3840X2160 (8,0 Megapixeli)
Rezolutie video (pixeli): 4K

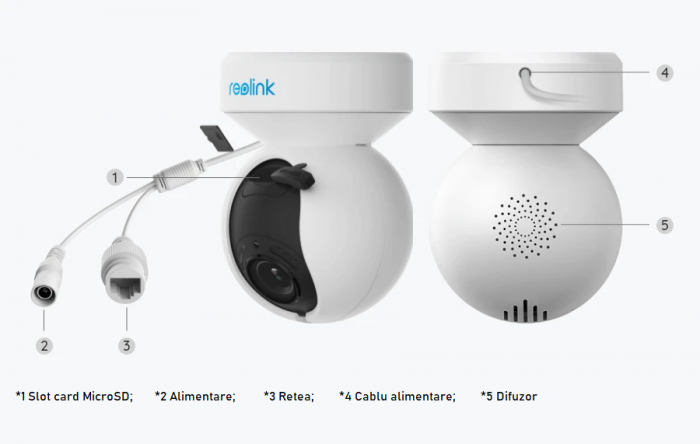

Interfata: Port de alimentare DC
Microfon: Bidirectional (are microton si Difuzorului)
Management: Maxim 12 transmisiuni video simultane
Software inclus: Accesibil gratuit
Tip: 8 MP WIFI
Tehnologie: Detectie Persoana/Vehicul; Color Night Vision; Auto Tracking; PTZ
taxa_verde: Inclusa
LED indicators: 12 buc/1,6 W/850 nm
Infrarosu: Distanta de vedere nocturna - pana la 12 meteri (40ft)
Stocare date: slot MicroSD (suporta max. 256GB)
Zoom Optic: 3X
Audio bidirectional: Da
Deschidere orizontala a ariei supravegheate: 355°
Utilizabila in Exterior: Da
Rezolutie megapixeli: 8MP
Unghi Vizualizare Orizontal/Vertical: 50°- 94° / 53°- 30°
Browsere acceptate: IE, Edge, Chrome, Firefox, Safari
Alarma Smart: Detectare Persoana; Detectare vehicul; detectare miscare.
Mod inregistrare: Inregistrare detectare miscare (default); Inregistrare programata; Inregistrare 24/7
Temperatura/Umiditatea de lucru: -10°C - +55°C / 10% - 90%
Standard de protectie: Waterproof
Standard wireless: IEEE 802.11 b/g/n
Frecventa de operare: 2.4 GHz/5GHz
Securitate wireless: WPA-PSK/WPA2-PSK
Vedere Nocturna Color: Pana la 12 meteri
Compatibil Cu Google Assistant: Da
Alimentare: DC 12.0V⎓1A, <12W
Cadre pe secunda: 20
Protection class: IP64
Compresie audio: AAC
Compresie video: H.265

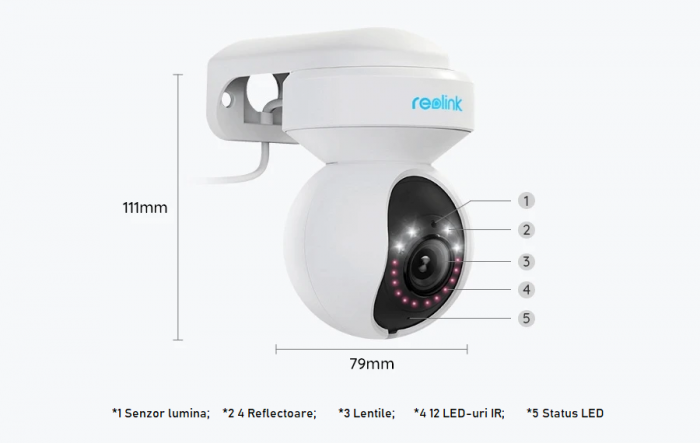

Dimensiuni: 8.5 x 8.5 x 11.8
Follow_no_follow: Yes
Greutate: 415
Lentile: f=2.8-8mm, F1.6, cu IR-cut
Memorie: Suportă max. 256GB microSD
Utilizatori maximi: Max. 20 utilizatori (1 admin + 19 utilizatori)
Protocoale suportate: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Rata transfer: Main: 4096-8192Kbps, Sub: 64-512Kbps
Sisteme de Operare acceptate: Windows, Mac OS, iOS, Android
Securitate: WPA/WPA2/WPA3
Unghi de inclinare: -
Zoom Digital: 16X
