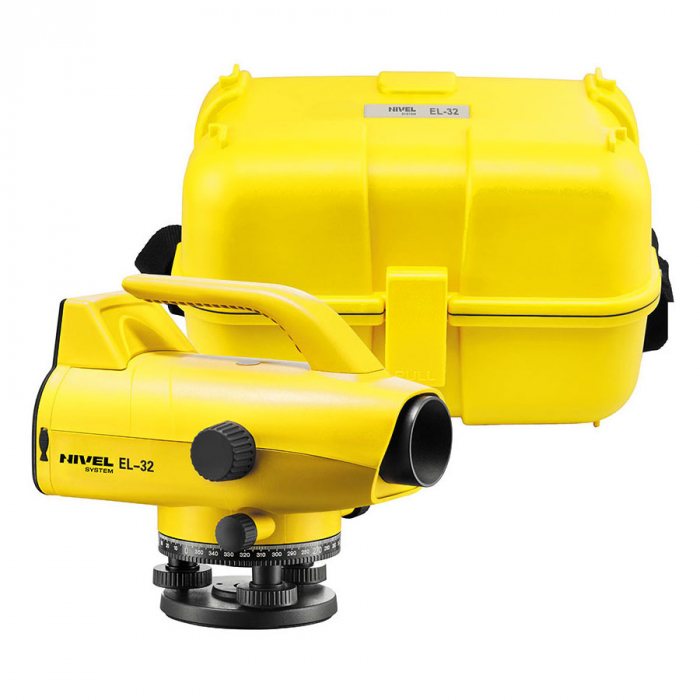

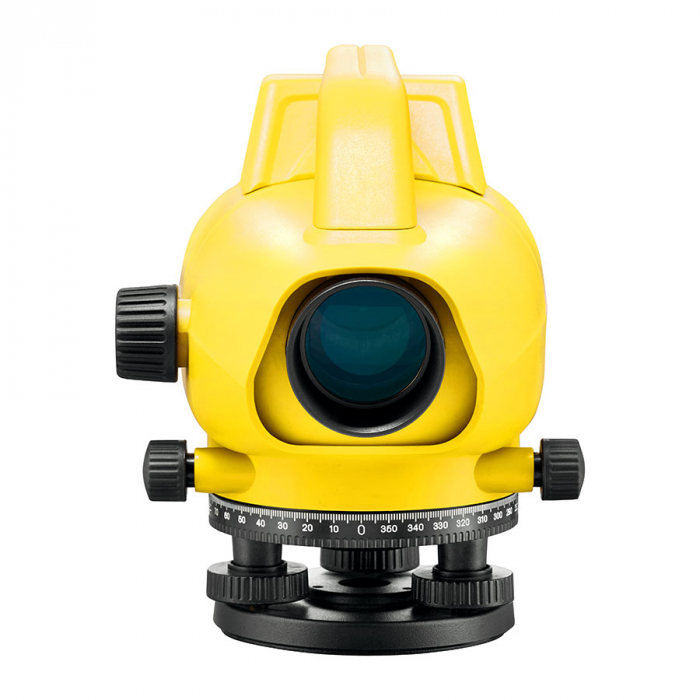

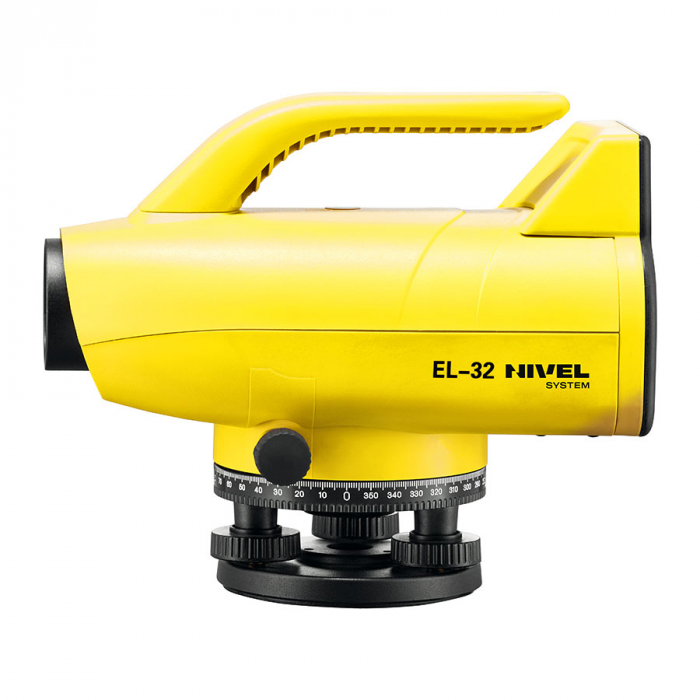

Nivel System EL-32

Discover the unrivalled performance of Nivel System's EL-32 electronic level, ideal for fast and accurate measurements on the job site. This state-of-the-art instrument is equipped with an efficient compensator and provides bright, clearly visible images on the LCD display. With a rugged and durable design, the EL-32 is built to withstand the toughest working conditions, ensuring reliability and accuracy on any construction project.

With the EL-32, measurements become easier and faster. The measurement process is automated and simple to perform: just aim the stage, set the focus and press the trigger button. The instrument will automatically read the stadia data, displaying height differences and distances directly on its large, backlit display. Results can be stored internally and exported to your computer for later analysis, making it easy to manage and archive your measurement data.

Impressive technical features of the EL-32 electronic level include a measurement accuracy of ±1.0 mm/km for electronic measurements and ±1.5 mm/km for visual measurements, a measurement range from 2 m to 100 m, and a measurement time of less than 3 seconds. Powered by a 2200 mAh Li-ion battery, the EL-32 offers up to 20 hours of continuous operation. IP55 water and dust protection and the ability to operate in the temperature range -20°C to +50°C ensure optimal performance in any environmental conditions. With the EL-32, every measurement is accurate and reliable, making work on site an efficient and professional experience.

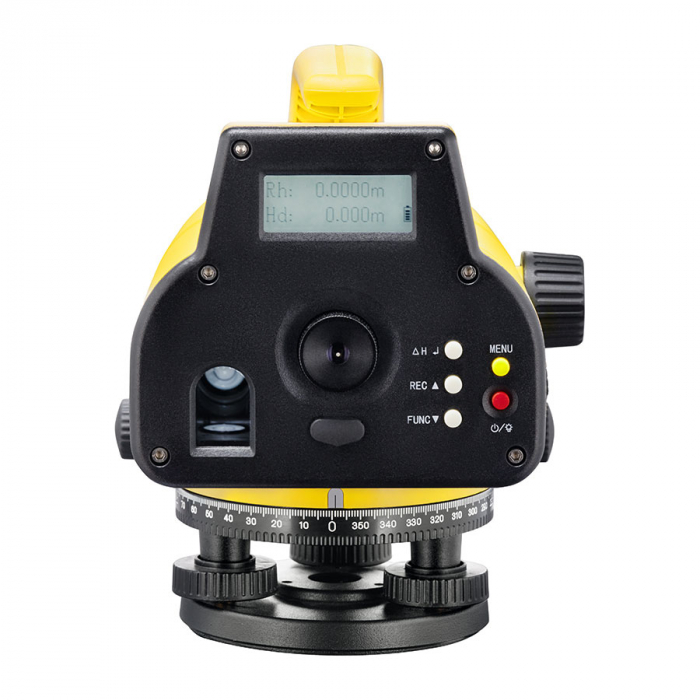

The EL-32 electronic level is a high-class equipment that provides fast and precise automatic and classic measurements, also in very difficult working conditions. The reading from the code’s measuring staff is carried out automatically. The measurement is very simple, it means aiming at the code staff, setting the focus and pressing the trigger button. The instrument will automatically read the patch, give the height difference and the distance from the unit to the staff. The measurement results are shown on a large, readable, backlit LCD screen. The equipment allows you to record measurements and export them to your computer.


• high accuracy (1mm / km)

• measurements in all conditions (in the shade and in the sun, dusk)

• long distance of working (100 m)

• fast measurement (<3 seconds)

• efficient vibration damping – a magnetic compensator

• automatic measurements and the classical method

• intuitive operation – “touch” button for triggering measurements, clear LCD display, MENU

• leveling relative to the reper

• resistant to severe terrain conditions (IP55)

• internal memory of measurements (1000 units)

• interface USB

• PC software – export of data to a computer (conversion of data to Excel format)

• efficient power supply (Li-ion)

Applications:

• classic leveling – determining the height difference in the field

• earthworks – ground leveling and excavations

• road construction

• paving works – construction of parking places, driveways as well as terraces

• water and sewerage works – controlling the depth of the trench and the pipelines laid dawn

• gardens and agriculture
