Complete Nivel System package consisting of EL-32 electronic level, SJJ1 tripod and TS-5 Stadie TS-5

Nivel System
695,75 EUR

The main advantages of the product are:

  • Optical system of the highest quality, 32x magnification
  • High precision of electronic measurements, 1.0mm / 1km
  • Comfort of work, archiving up to 1000 records, USB
  • Safe use for years, reliable, proven equipment


Perfect your on-site measurements with the complete Nivel System EL-32, SJJ1 Tripod and TS-5 Stadia package. The EL-32 electronic level is designed to deliver accurate and fast measurements, even in the toughest working conditions. The large, clear LCD screen displays measurement data in real time and automatic functions ensure easy and efficient use.

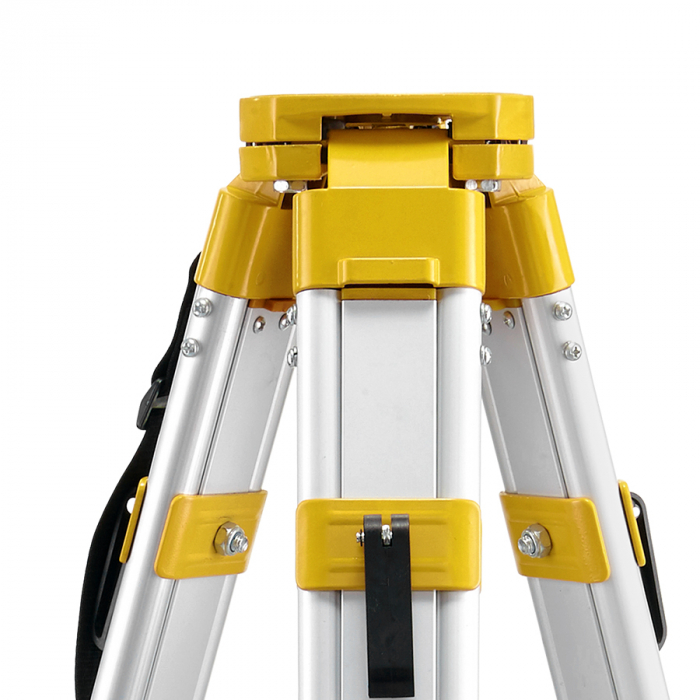

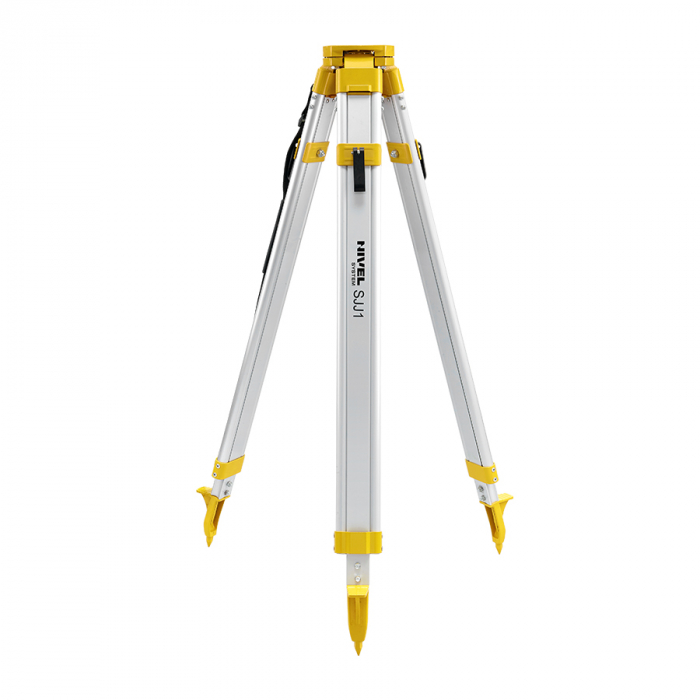

The SJJ1 tripod is constructed from high quality materials, providing maximum stability and durability. Its rugged design allows use in all field conditions, ensuring that the EL-32 level is perfectly positioned for accurate measurements. In addition, it is easy to transport and set up, making it ideal for everyday use on the jobsite.

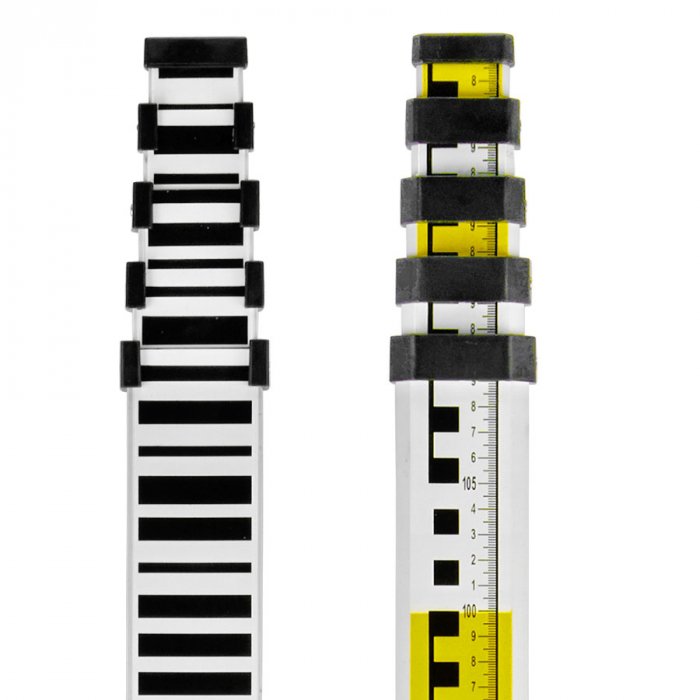

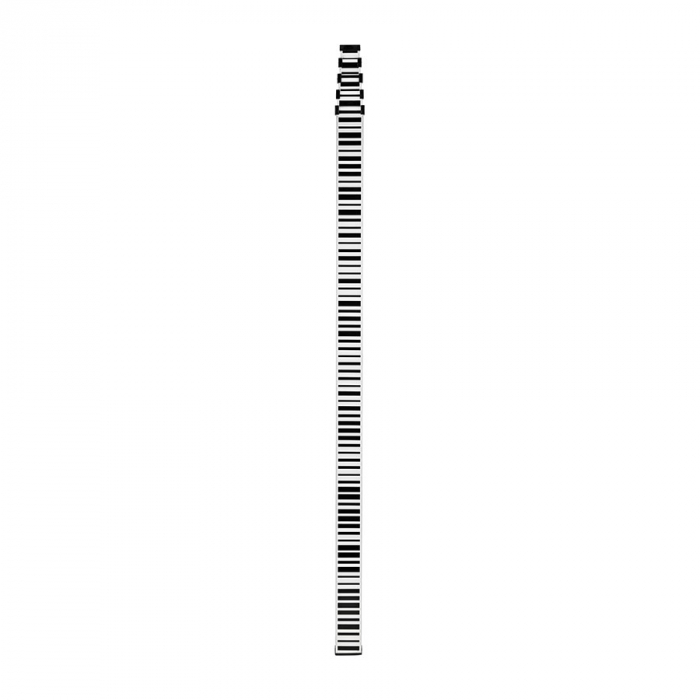

The TS-5 stage completes the package, providing accurate and reliable readings. With a clear and well-defined barcode, it makes it easy to get accurate results in any working environment. Combining these three top instruments, the Nivel System EL-32, SJJ1 Tripod and Stadia TS-5 package becomes the perfect choice for construction professionals looking for performance and reliability.

In stock

Delivery date: poimaine, 22.08.2025

Stock limit
Add to cart
Product Code: Pachet-EL-32 Do you need help? 0212017154
Add to wishlist Request information

Produse Alternative

Levels / Lasers - Precision Electronic Inclinometer Level System DL60

Precision Electronic Inclinometer Level System DL60

78,65 EUR
details
Levels / Lasers - Nivel System CL4R, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

Nivel System CL4R, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

361,79 EUR
details
Levels / Lasers - Nivel System NL740R DIRITAL rotating laser, red beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

Nivel System NL740R DIRITAL rotating laser, red beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

1.559,69 EUR
details
Levels / Lasers - Nivel System CL4D-R , 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

Nivel System CL4D-R , 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

531,19 EUR
details
Levels / Lasers - Nivel System CL3G, 3D, Multifunctional, green laser, 3 laser planes (360 degrees)

Nivel System CL3G, 3D, Multifunctional, green laser, 3 laser planes (360 degrees)

385,99 EUR
details
Levels / Lasers - Nivel System CL4D-P, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

Nivel System CL4D-P, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

761,09 EUR
details
Levels / Lasers - Nivel System NL720G DIGITAL rotating laser, green beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

Nivel System NL720G DIGITAL rotating laser, green beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

1.462,89 EUR
details
Levels / Lasers - Nivel System NL740G DIGITAL rotating laser, green beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

Nivel System NL740G DIGITAL rotating laser, green beam, vertical and horizontal planes a with slopes, at wide range of 700 m, autoalignment

1.741,19 EUR
details
Levels / Lasers - Nivel System EL-32 electronic level

Nivel System EL-32 electronic level

611,05 EUR
details
Levels / Lasers - Nivel System CL3R, 3D, Multifunctional, red laser, 3 laser planes (360 degrees)

Nivel System CL3R, 3D, Multifunctional, red laser, 3 laser planes (360 degrees)

301,29 EUR
details
Levels / Lasers - Nivel System CL4D-B, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

Nivel System CL4D-B, 4D, Multifunctional, red laser, 4 laser planes (360 degrees)

652,19 EUR
details
  • Description
  • Characteristics
  • Reviews (0)

Nivel System EL-32



Perfect your on-site measurements with the complete Nivel System EL-32, SJJ1 Tripod and TS-5 Stadia package. The EL-32 electronic level is designed to deliver accurate and fast measurements, even in the toughest working conditions. The large, clear LCD screen displays measurement data in real time and automatic functions ensure easy and efficient use.

The SJJ1 tripod is constructed from high quality materials, providing maximum stability and durability. Its rugged design allows use in all field conditions, ensuring that the EL-32 level is perfectly positioned for accurate measurements. In addition, it is easy to transport and set up, making it ideal for everyday use on the jobsite.

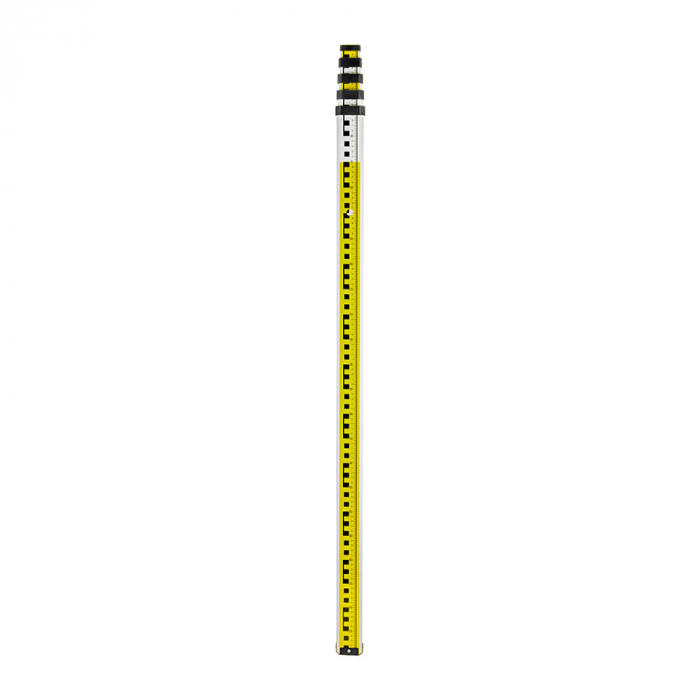

The TS-5 stage completes the package, providing accurate and reliable readings. With a clear and well-defined barcode, it makes it easy to get accurate results in any working environment. Combining these three top instruments, the Nivel System EL-32, SJJ1 Tripod and Stadia TS-5 package becomes the perfect choice for construction professionals looking for performance and reliability.

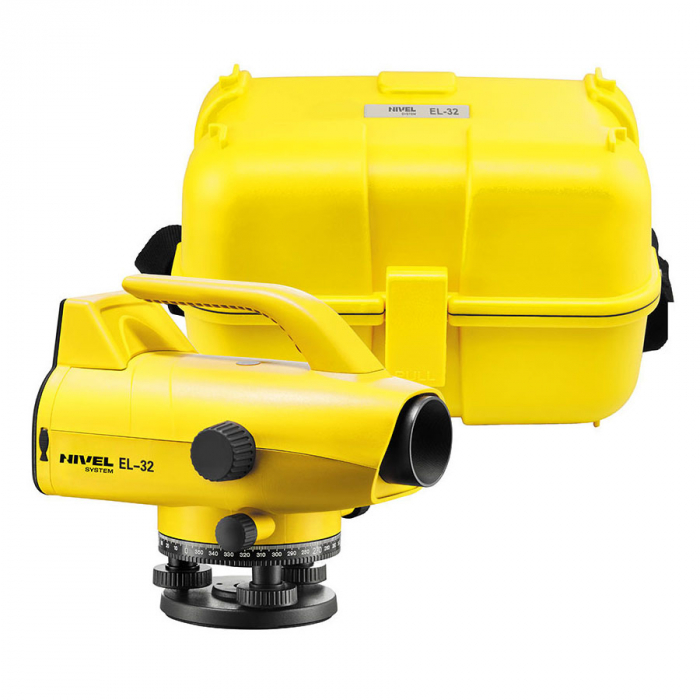

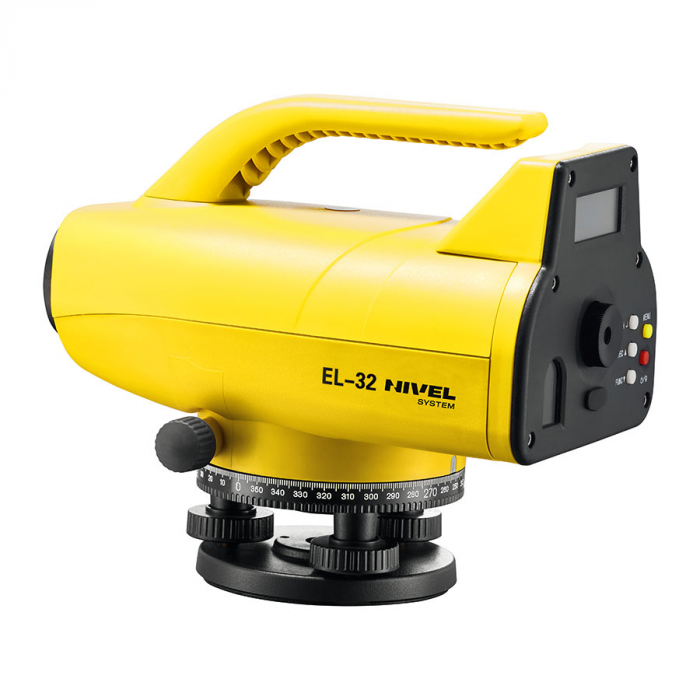

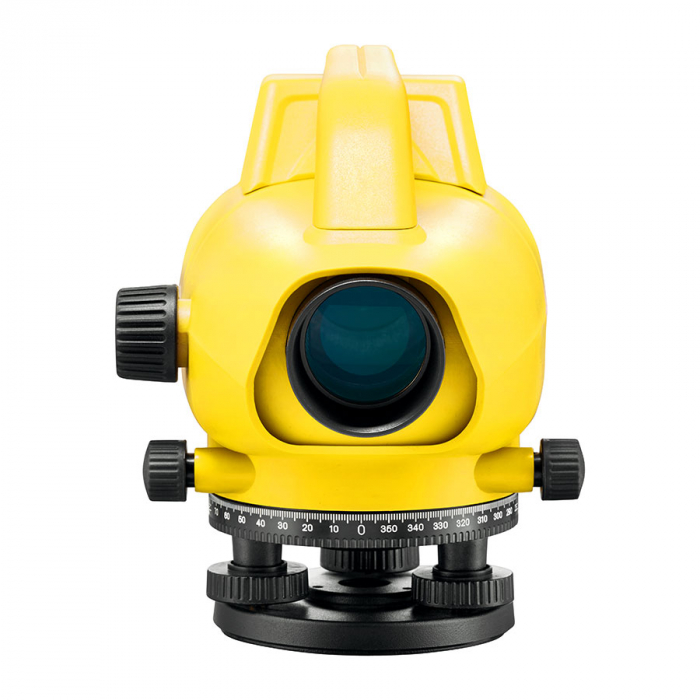

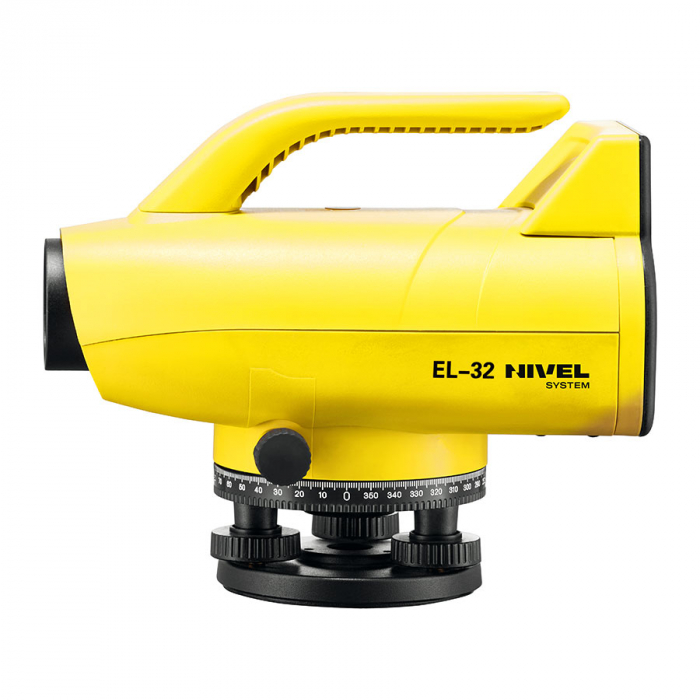

The EL-32 electronic level is a high-class equipment that provides fast and precise automatic and classic measurements, also in very difficult working conditions. The reading from the code’s measuring staff is carried out automatically. The measurement is very simple, it means aiming at the code staff, setting the focus and pressing the trigger button. The instrument will automatically read the patch, give the height difference and the distance from the unit to the staff. The measurement results are shown on a large, readable, backlit LCD screen. The equipment allows you to record measurements and export them to your computer.


  • high accuracy (1mm / km)

  • measurements in all conditions (in the shade and in the sun, dusk)

  • long distance of working (100 m)

  • fast measurement (<3 seconds)

  • efficient vibration damping – a magnetic compensator

  • automatic measurements and the classical method

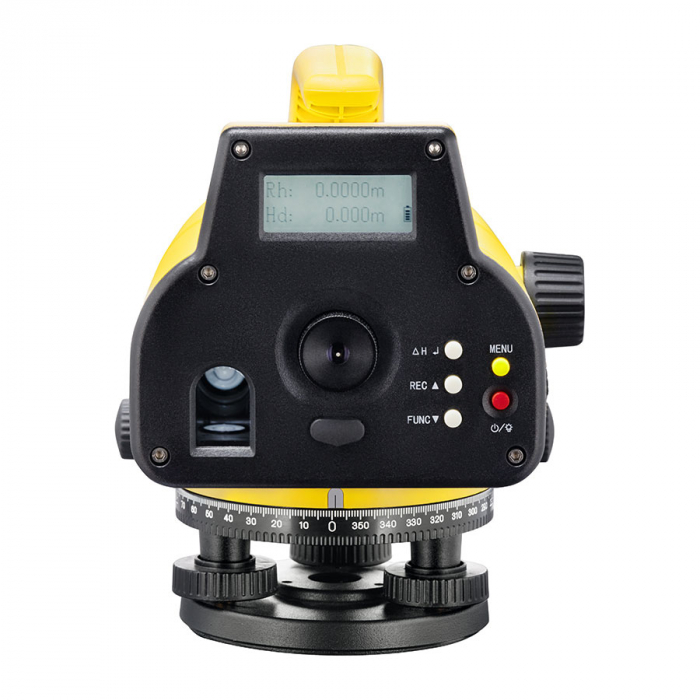

  • intuitive operation – “touch” button for triggering measurements, clear LCD display, MENU

  • leveling relative to the reper

  • resistant to severe terrain conditions (IP55)

  • internal memory of measurements (1000 units)

  • interface USB

  • PC software – export of data to a computer (conversion of data to Excel format)

  • efficient power supply (Li-ion)



Applications:

  • classic leveling – determining the height difference in the field

  • earthworks – ground leveling and excavations

  • road construction

  • paving works – construction of parking places, driveways as well as terraces

  • water and sewerage works – controlling the depth of the trench and the pipelines laid dawn

  • gardens and agriculture






Technical specifications



Magnification 32x
Electronic measurement ± 1.0mm/km
Optical measurement ± 1.0mm/km
Accuracy – Distance Measurement – D? 10m < ±10mm
Accuracy – distance measurement – 10m < ±0,1% D
Accuracy – distance measurement – D> 50m < ±0,2% D
Time of measurement < 3 seconds
Compensator type magnetic
The scope and accuracy of the compensator ± 15’/0,3”/min
Power Li-ion, 2200mAh, ok.20 h.
Internal storage 1000 records
Interface micro-USB
Resistance class IP55
Working temperature range -20°C to +50°C
Dimensions 240 x 130 x 205 mm
Libra 1,9 kg



Product compliance information

Greutate: 1.9 Kg

Tip: Cu acumulator

Tip produs: Nivelmetru

Lungime: 240 mm

Width: 130 mm

Height: 205 mm

Protection class: IP55

Batteries needed: Da

Batteries included: Da

Precision: ± 1.0mm/km

Material: Metal

Package content: Manual de instrucțiuni – 1 buc., Geantă de transport – 1 buc., Fir cu plumb – 1 buc., EL-32 – nivelă electronică – 1 buc., Software pentru PC – 1 buc., Cablu USB – 1 buc., SJJ1 - 1 buc., TS-5 - 1 buc.
