Nivel System CL4D-P

NEW! Crossline laser with violet beam

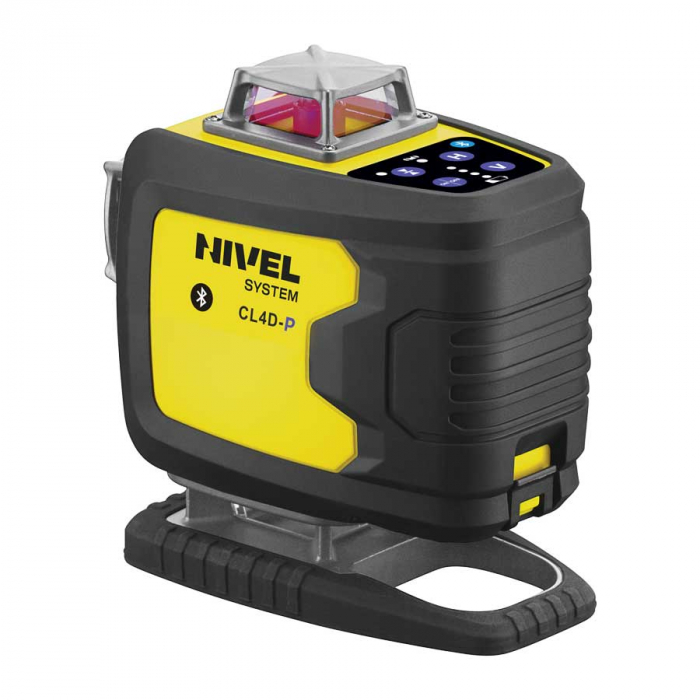

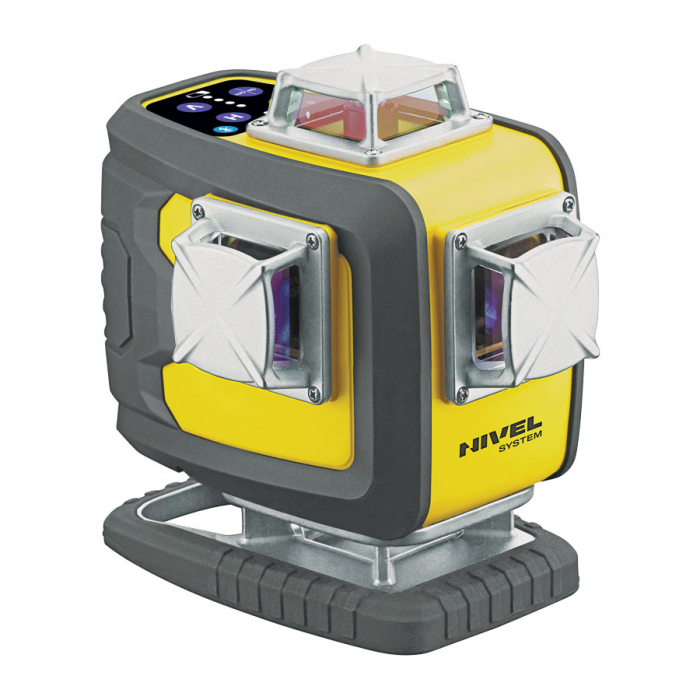

Nivel System CL4D-P

2 vertical, 2 horizontal planes

It started simply. With the classic red and green beams. Then we took a step further and introduced another color – blue.

Now, we happen to be the first in the world to present an innovative, never-before-seen concept on the market – the violet laser!

And this is all because…. WE LOVE LASER COLORS!

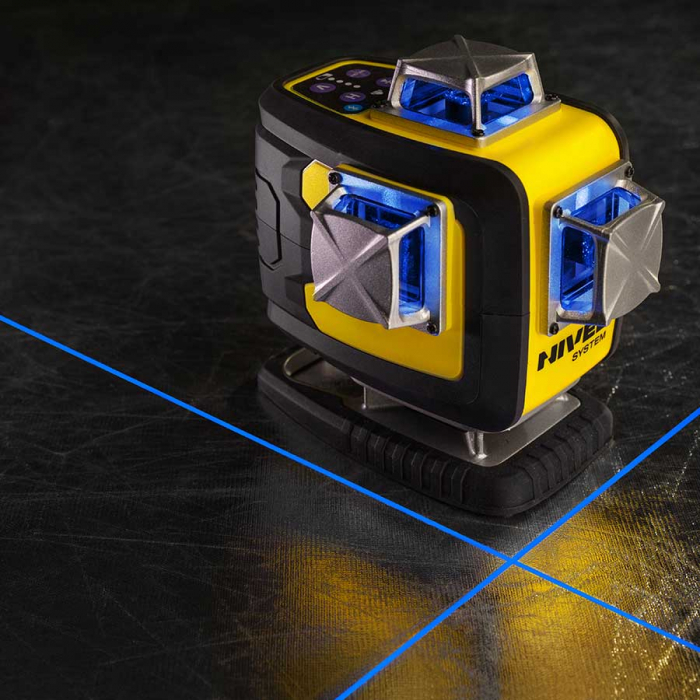

Nivel System CL4D-P – the multi-purpose 4D cross laser with the clearly visible violet laser beam (450 nm). The four laser heads project on surfaces perfectly levelled reference lines (horizontal and vertical), each in the range of 360°.

Unlike in conventional lasers, the lower horizontal line is available as low as only 20 mm above the floor level which is a great aid in construction and finishing works (e.g. tiling).

The electronic compensator offers very high accuracy (±1 mm/ 10 m), which is indispensable for applications to meet the highest precision requirements.

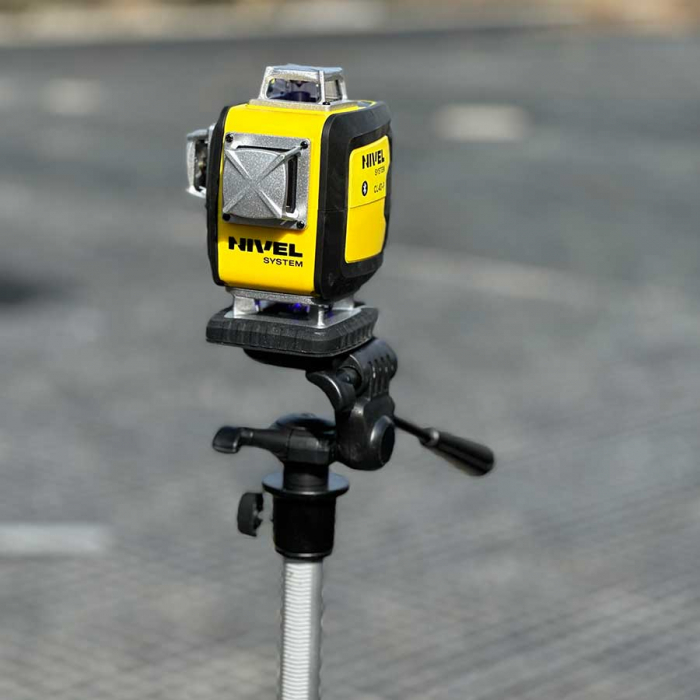

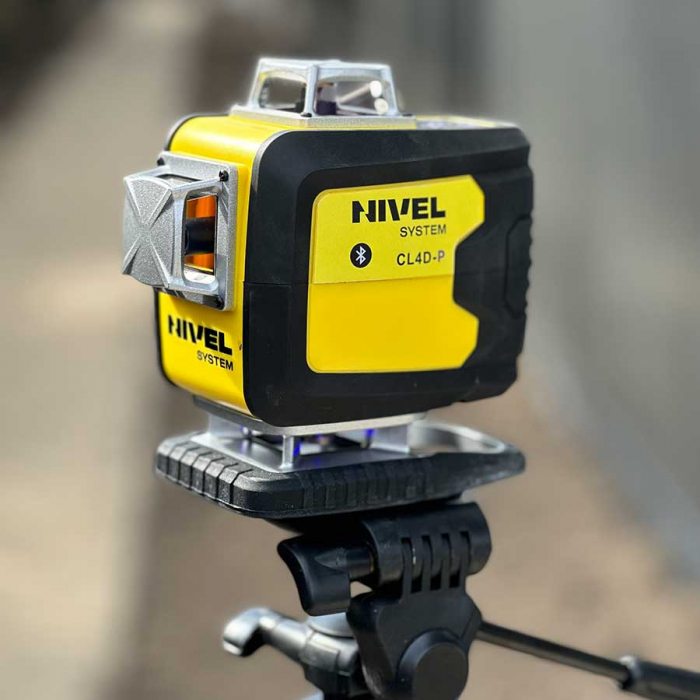

The electronic compensator ensures quick self-levelling and is much more efficient in damping vibration of the ground than a magnetic compensator, with no beam-swing effect. After locking of the compensator the unit can also be tilted, thus work in slant planes. The built-in 1/4″ thread enables steady fastening the equipment to a tripod, adapter or laser shelf. The unit is very well protected against dust and water under the IP54 rating. The leaser heads are protected by the metal shields whereas the glass windows have anti-reflective filters- the laser beam does not reflect from the glass and no laser glows are formed. The rubber protectors at the corners of the device body prevent from abrasion as well as provide a more reliable grip.

• accuracy and reliability –clear beam of the violet laser guarantees comfortable work in all conditions, the unit enables work with the accuracy of ± 1 mm / 10 m

• even greater range –pulse function allows you to work with the laser sensor outdoors at large distances

• precise beam projection – bright violet laser beam and high-quality optics generate lines that are very clearly visible

• versatility and multitasking – 4 laser planes (360 °)

• quick and efficient levelling –innovative electronic vibration compensation system ensures a quick preparation of the unit for work, the laser precisely sets the beam, even on an unstable base, as well as allows to work with slant planes after locking of the compensator

• intuitive operation – easy and quick to use

• laser adapter and elevator – secure fastening even in difficult conditions on the site and fine height adjustment

• convenient power supply – Li-ion pack with the backup battery

• resistant to damage and wear– rubber parts of the laser housing protect it from impact or shock damage, the equipment is resistant to dust and water (IP54)

EASY AND QUICK MEASUREMENT

The CL4D-P multilaser will level out and get ready for operation right after turning on. Generated violet laser beam is well visible and forms reference lines on surfaces for the horizontal and/ or vertical works. Now you can manage the laser functions from your mobile phones via Bluetooth communication. Download the app from the App Store or Google Play, install on your device and manage the laser remotely.

VERSATILITY

The CL4D-P allows to work with horizontal and vertical beams. Each of the 4 planes can be displayed separately or up to 3 planes at the same time- 2 x V, 1 x H (all planes at the same time available via Bluetooth).

RELIABLE ON-SITE

The equipment is resistant to dust and water (IP54). Moreover, the strengthened laser housing makes it perform well in difficult conditions on the site. Now our CL4D-P (violet beam) cross-line lasers have a new accessory to support the finishing works like laying floor tiles- the product set comprises the special floor laser targets. Place the floor targets on the floor, tiles or terracotta. The precise target graduation informs about the level or deviation from the level of the laser line generated by the CL4D laser. All types of work can be done with the standard set delivered with the laser- spirit levels or conventional tools are not necessary any more.

COMFORTABLE OPERATION

CL4D-P has an intuitive control panel. Function management, including the precise adjustment of the beam, is performed quickly and efficiently. The laser is powered by a lithium battery and is embodied in the compact housing which makes the laser handy, easy to install on site and carry. With regard to the work comfort of the users, we added a spare Li-ion rechargeable battery to the standard set! The other pack can be charged independently, which eliminates flat battery downtimes.

VIOLET LASER BEAM vs. GREEN BEAM

The super-visible beam of the violet laser diode (450 nm wavelength) of the Japanese SHARP brand compared to the green beam (515-535 nm) is thinner, recommended for works requiring high accuracy. In addition, it stands out perfectly on the construction site, especially in the working environment of other laser beam colours – eliminating errors.

High Precision Performance

The Level System CL4D-P laser level is designed to deliver outstanding accuracy, with an error of only ±1 mm per 10 m. Equipped with a violet laser beam, it provides excellent visibility and measurement accuracy, making it ideal for finishing work and complex architectural details.



Robustness and Durability

Built to withstand demanding working environments, the CL4D-P features a new, reinforced IP54-protected housing, guaranteeing resistance to dust and splash water. Its robust design makes this laser level a reliable tool for any construction site.



Flexibility and Total Control

The device offers four laser planes (two horizontal and two vertical) covering 360°, allowing users to perform complex measurements with ease. The advanced electronic compensator lock function allows adjustment for tilted measurements, providing increased flexibility in use.



Modern Connectivity

With the ability to connect via Bluetooth, the CL4D-P enables operation via mobile devices, facilitating efficient use and quick adjustments directly from your smartphone or tablet. The intuitive control panel and LED indicators help to quickly monitor settings and battery charge level.



Complete Package for Professionals

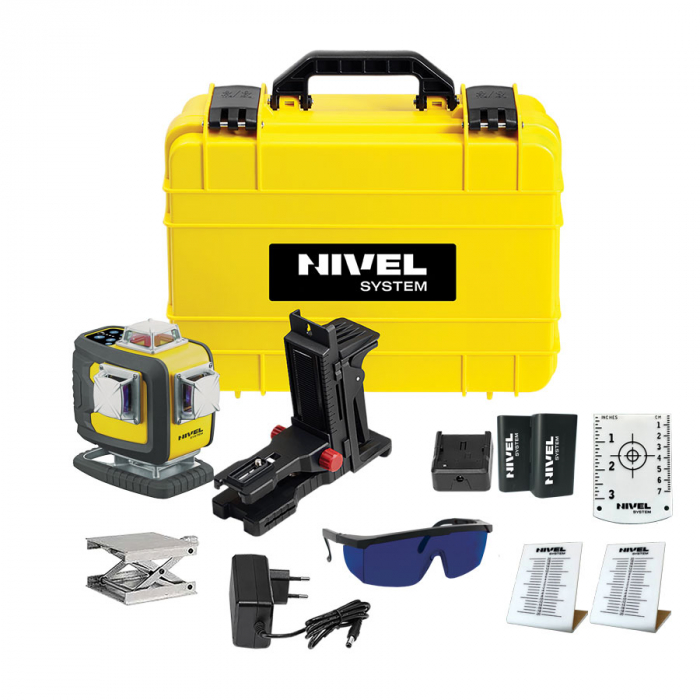

The product package includes laser unit, laser targets, laser lift, adapter, rechargeable Li-ion batteries, charger, laser viewing glasses and a rugged carrying case, ensuring you have everything you need to get started right away.



Applications:

• finishing works – vertical, horizontal and slant planes

• laying tiles and terracotta

• plasterboard works

• construction works – wood, steel and concrete

• masonry works – indoors and outdoors (foundations, walls, stairs, screeds and formwork)

• installation works – marking wire lines and transferring points

• carpentry – furniture

• ground levelling
