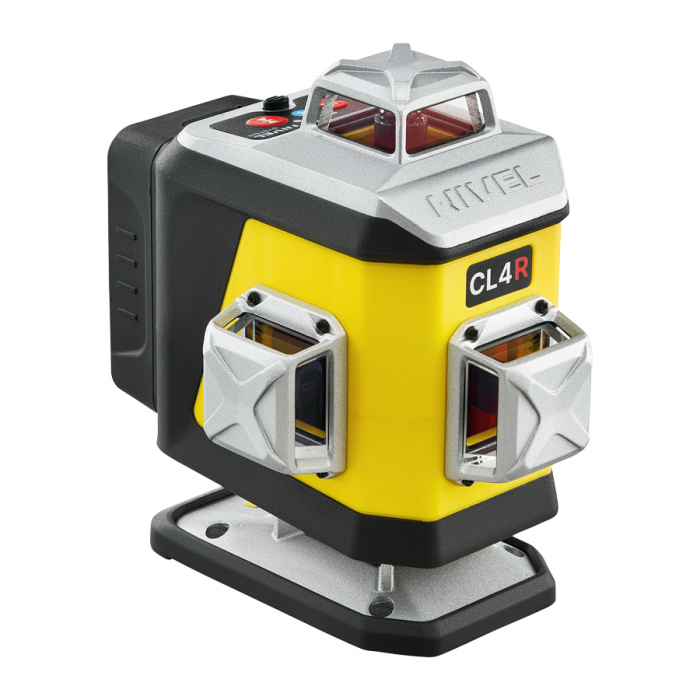

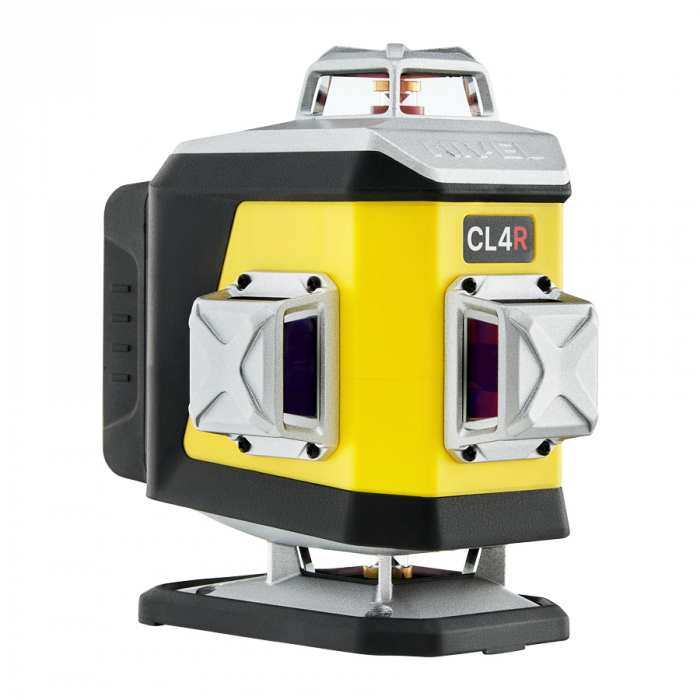

Nivel System CL4R is a. the multi-purpose 4D cross laser.

Perfectly levelled reference lines (horizontal and vertical, each in the range of 360°) are projected on surfaces by the laser heads to support variety of construction and finishing works. The simultaneous projection of the two planes enables to determine right angles. This option is particularly useful for construction and tiling applications While the compensator locked the unit can also be tilted, thus work in slant planes. The built-in 1/4″ thread enables steady fastening the equipment to a tripod, adapter or laser shelf. The rubber protectors at the corners of the device body prevent from abrasion, shock or impact as well as provide a better grip.



• accuracy and reliability – fine beam of the red laser guarantees convenient work , the unit enables work with the accuracy of ± 2 mm / 10

• versatility and multitasking – 4 laser planes (360 °), exceptionally low horizontal line (only 17 mm above the floor level) is a great aid in construction and finishing works (e.g. tiling)

• numerical elevation– with the RD800 DIGITAL receiver which displays elevation in millimetres

• quick and efficient levelling – a modern magnetic vibration compensation system ensures a quick preparation of the unit for work, the laser precisely sets the beam, even on an unstable base, as well as allows to work with slant planes after locking of the compensator

• even greater range – with pulse function and the sensor you can use the laser at large distances for outdoor applications (up to 140m)

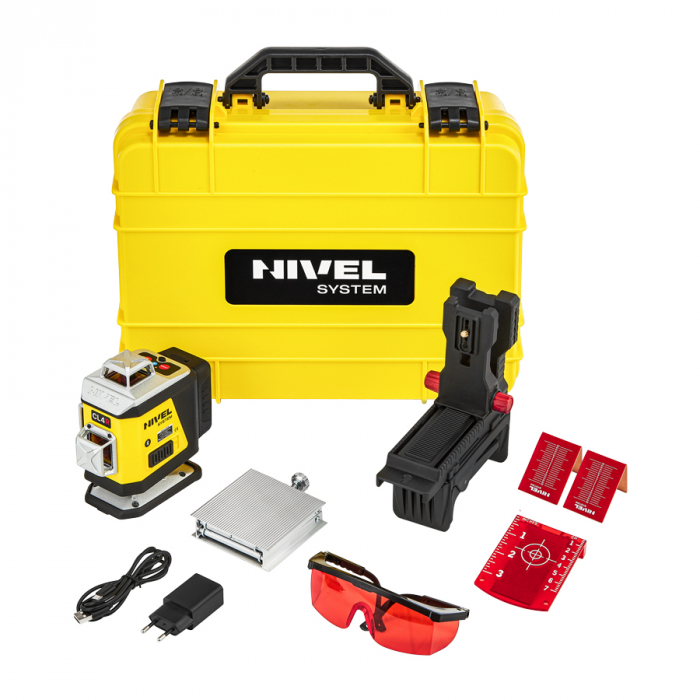

• laser adapter and elevator – secure fastening even in difficult conditions on the site and fine height adjustment

• convenient power supply – Li-ion battery (4000 mAh), free from the memory-effect, chargeable also while in operation

Resistant to damage and wear– robust, metal-reinforced housing, laser heads protected by metal shields, rubber parts of the laser housing protect it from impact or shock damage, the unit is resistant to dust and water (IP54)



Easy and quick measurement

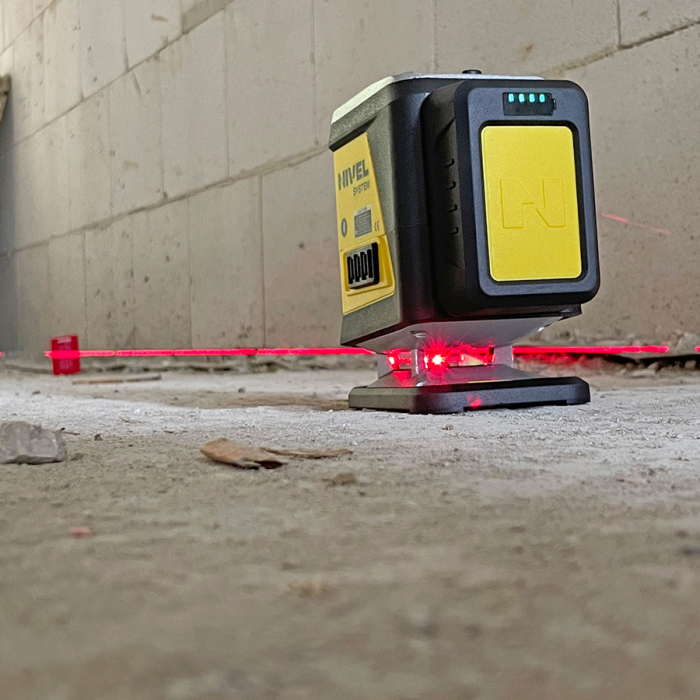

The laser will level out and get ready for operation right after turning on. The generated red laser beam is highly visible, projected on the wall creates a reference line for horizontal and vertical work.



Versatility

The CL4R allows to work with horizontal and vertical beams. The planes can be displayed separately or combined.



Comfortable operation

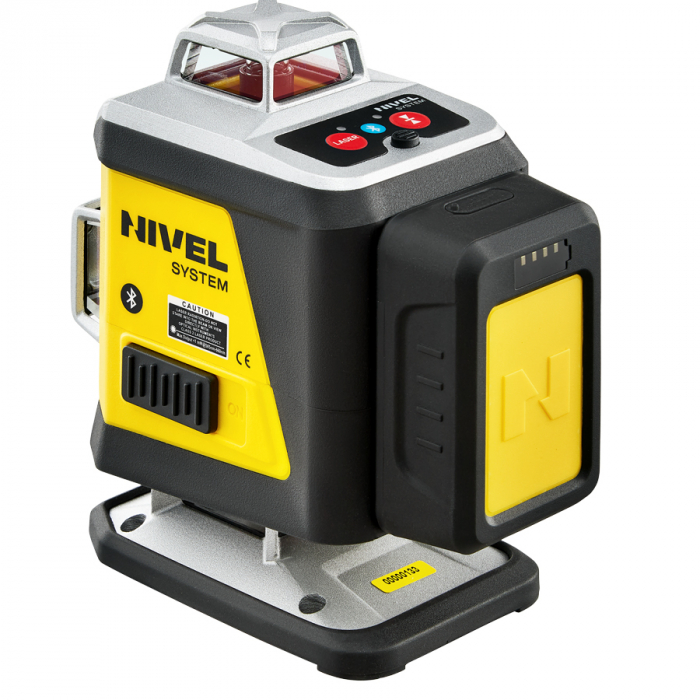

CL4R has an intuitive control panel. Function management, including the precise adjustment of the beam, is performed quickly and efficiently. The laser is powered by a lithium battery and is embodied in the compact housing which makes the laser handy, easy to install on site and carry. The laser functions can now be managed from mobile phones via Bluetooth by a dedicated app.



Comfortable use

CL4R has an intuitive control panel. Operation of functions, including precise alignment of the beam, is efficient and effective. Thanks to the Bluetooth module, the user can control the laser functions using mobile devices. The whole thing is complemented by a compact housing, thanks to which the laser is handy, easy to install on the construction site and easy to transport.

Technical specifications
