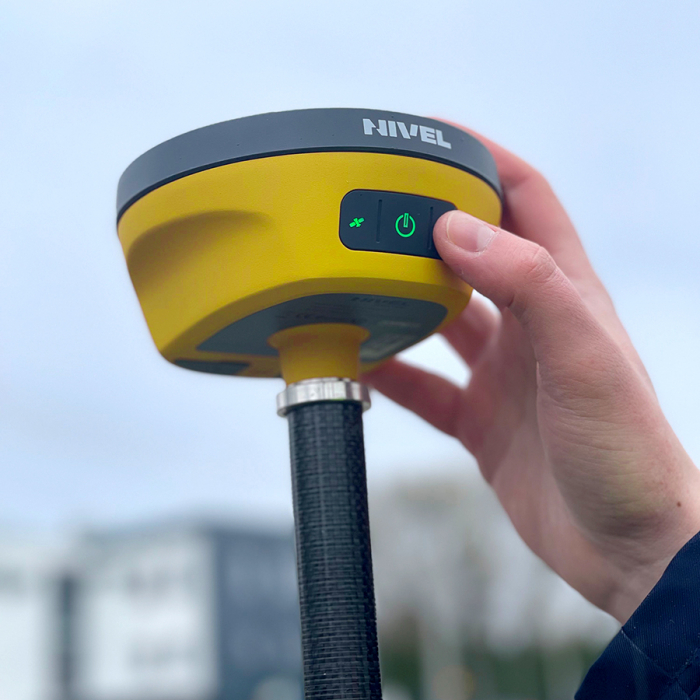

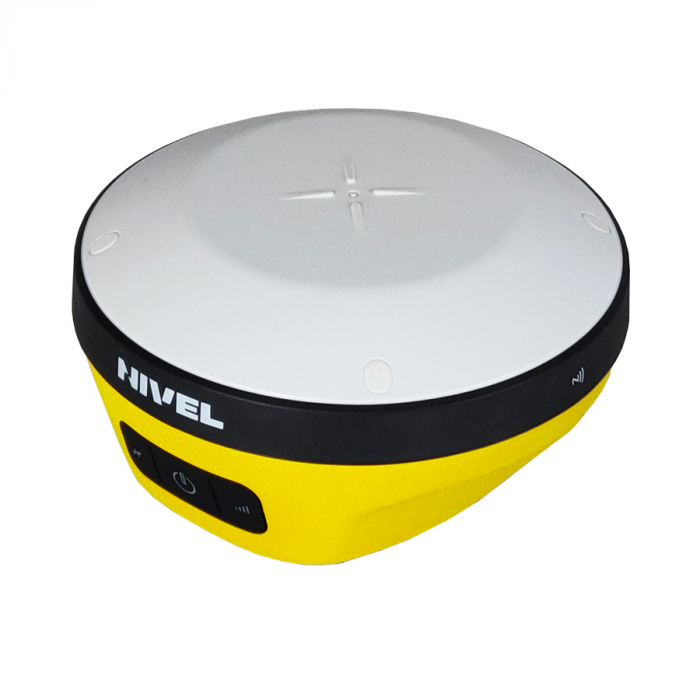

GNSS Receiver, Nivel System Point 3 with latest generation IMU, 1408 GNSS channels, over 10 hours field operation, IP67 protection

GNSS Receiver, Nivel System Point 3 with latest generation IMU, 1408 GNSS channels, over 10 hours field operation, IP67 protection

Name: GNSS Receiver, Nivel System Point 3 with latest generation IMU, 1408 GNSS channels, over 10 hours field operation, IP67 protection
Brand: Nivel System
SKU: Point3
Price: 4870.25 EUR
Availability: InStock

Nivel System

4.870,25 EUR

• Nivel System Point 3 – versatile GNSS receiver.
• Next-generation IMU system with 9 axes allowing the pole to tilt at +/- 90 degrees.
• 1408 GNSS Channels, 4 systems and the ability to handle all current and future signals (GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS).
• FIX Support for compensating internet signal loss – necessary in areas with weak GSM coverage.
• Over 10 hours of field operation without charging the 6800 mAh Li-ion battery.
• The latest NT-1024 tablet for operating the receiver, with a high-speed 4G modem and Android operating system.

Order

Delivery date: Wednesday, 22.10.2025

Stock limit

Add to cart

Product Code: Point3 Do you need help? 0212017154

Add to wishlist

Produse Alternative

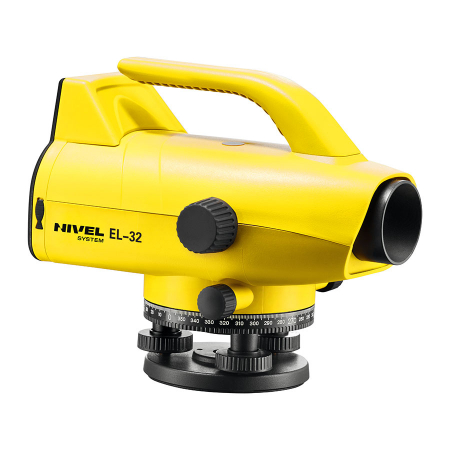

Complete Nivel System package consisting of EL-32 electronic level, SJJ1 tripod and TS-5 Stadie TS-5

695,75 EUR

details

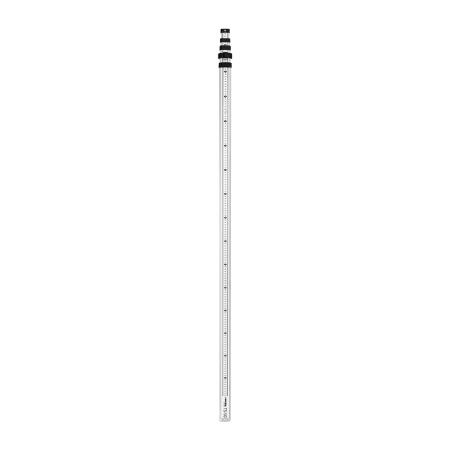

Robust TS-50 Nivel System stave

54,45 EUR

details

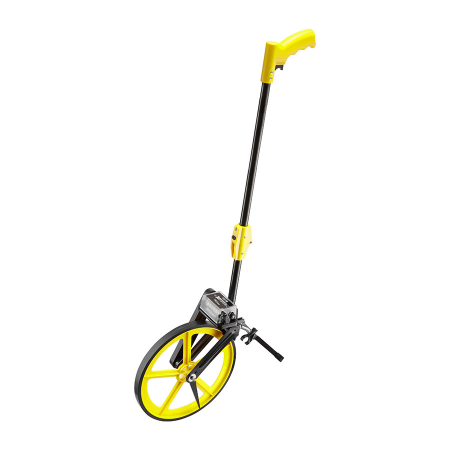

Measuring wheel Nivel system M100

102,85 EUR

details

Nivel System SJJ1 aluminium tripod with locking clamps and flat clamp base

72,60 EUR

details

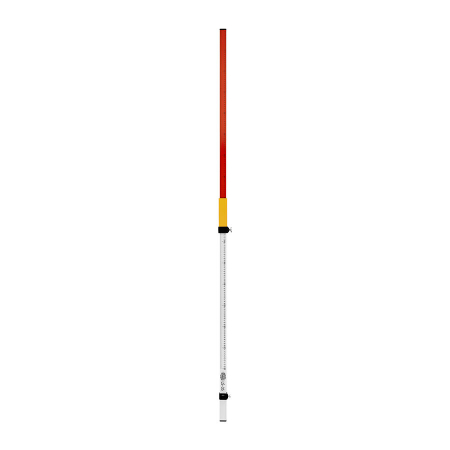

Lightweight and robust LS-35 Nivel System stave

72,60 EUR

details

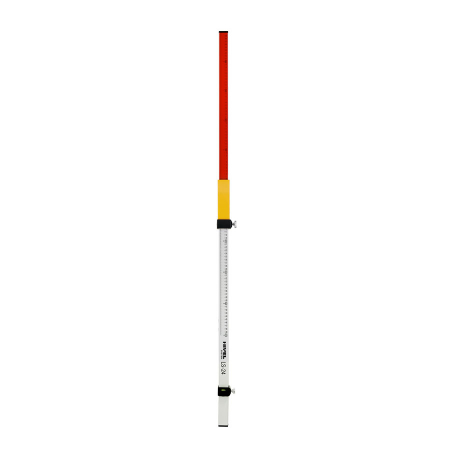

Lightweight and robust LS-24 Nivel System stave

54,45 EUR

details

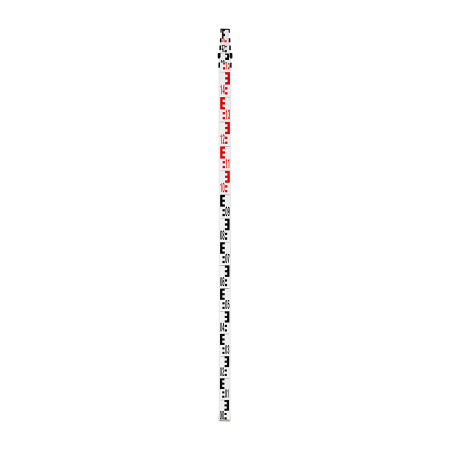

Robust TS-70 Nivel System stave

72,60 EUR

details

Electronic theodolite Nivel System DT-2L

1.058,75 EUR

details

Nivel System SJJ32 telescopic aluminium tripod with locking clamps and flat clamp base

217,80 EUR

details

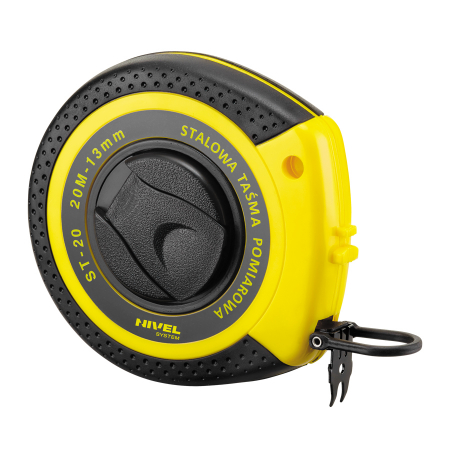

Nivel System ST-20 steel roller

14,52 EUR

details

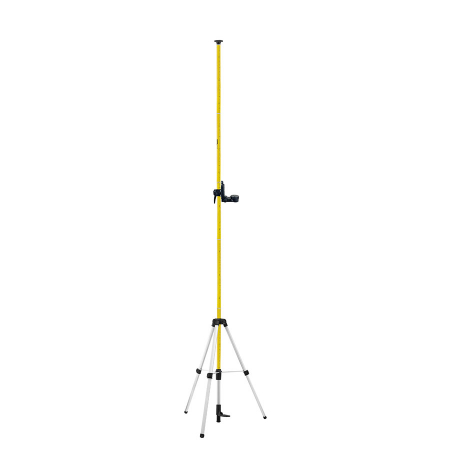

Nivel system LP-36 EX extension pole with tripod

96,80 EUR

details

Measuring wheel Nivel system M100 Digital

181,50 EUR

details

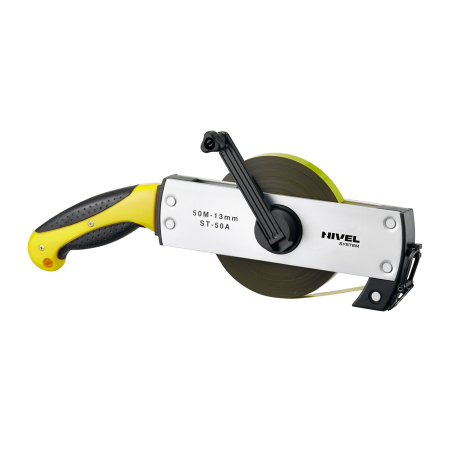

Nivel System ST-50A steel roller with Offset

29,04 EUR

details

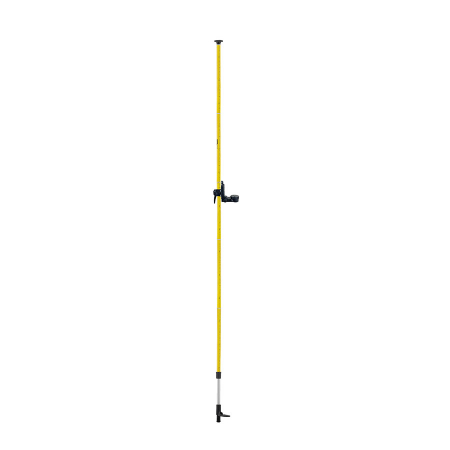

Nivel system LP-36 extension pole

72,60 EUR

details

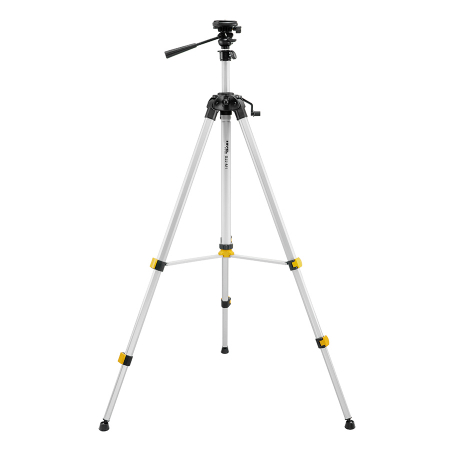

Nivel System SJJ-M1 EX aluminium tripod

72,60 EUR

details

Description
Characteristics
Download (2)
Reviews (0)

Opt for Speed and Comfort - The Right Moment to Purchase a GNSS Receiver with IMU

Do you need a versatile GNSS receiver?
Are you not familiar with specialized measurements and sometimes need to measure or determine certain points on the ground?
Not sure what an IMU is and if you need one?
We are here to answer these questions and guide you on how to approach field measurements with a modern GNSS receiver - Nivel System Point 3 equipped with a next-generation IMU.

What is IMU?

And how will it benefit your work?
The next-generation IMU is a cutting-edge 9-axis inertial system that allows the pole to tilt up to +/- 90 degrees.
You might ask, why is this necessary? The answer is: to measure points that conventional receivers cannot determine. These situations occur where we have a covered horizon/sky (points under trees, under building eaves, etc.). It will also work well for current measurements - you will measure each point faster without the need for precise vertical alignment of the pole.

The IMU we present is resistant to magnetic interference, meaning that no metal objects (e.g., fences) will obstruct measurements.

Do you think complicated operations are required? The Nivel System receiver does not require time-consuming calibration - it operates on a plug & play principle. You need to:

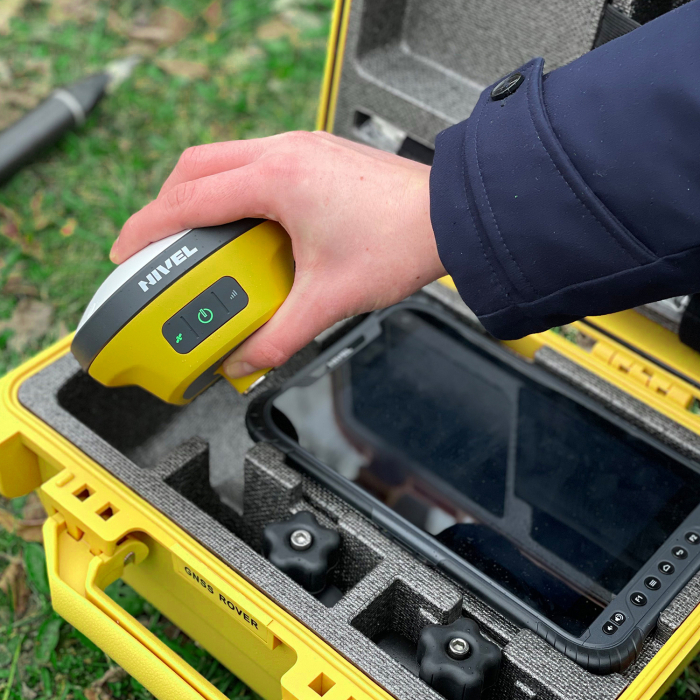

Remove the Point 3 and tablet from the carrying case
Mount on a pole
Start initialization

Enjoy measurements with tilt compensation!

The position will be updated very shortly.

Advantages of Using Nivel System Point 3

	1408 Channels GNSS, 4 systems and the ability to manage all current and future signals (GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS).
FIX Support for compensating the loss of internet signal - necessary in areas with weak GSM coverage.
	Compact and Lightweight Receiver, resistant to drops on concrete from a height of 2 meters. Water and dust resistant (IP67), allowing it to operate in the harshest weather conditions. Due to its small size, it can be constantly carried to work sites, and additionally, its operation is not affected by working conditions.
In the standard version, it is equipped with a UHF radio modem with the ability to work up to 8 km. It works with other receiver brands and in base/rover mode.
	Over 10 hours of field operation without recharging the 6800 mAh Li-ion battery. If it discharges, it can be recharged via the universal USB-C port (at the office, in the car, or in the field). If you encounter a problem charging the device in the field, for the receiver and tablet, use only the power bank or USB port in the car - no additional charger is needed for each device
Internal memory (8 GB) allows you to store static measurement data for several days.
	Centimeter-level Precision — thanks to the unique automatic measurement control function, you have the guarantee of position repeatability.

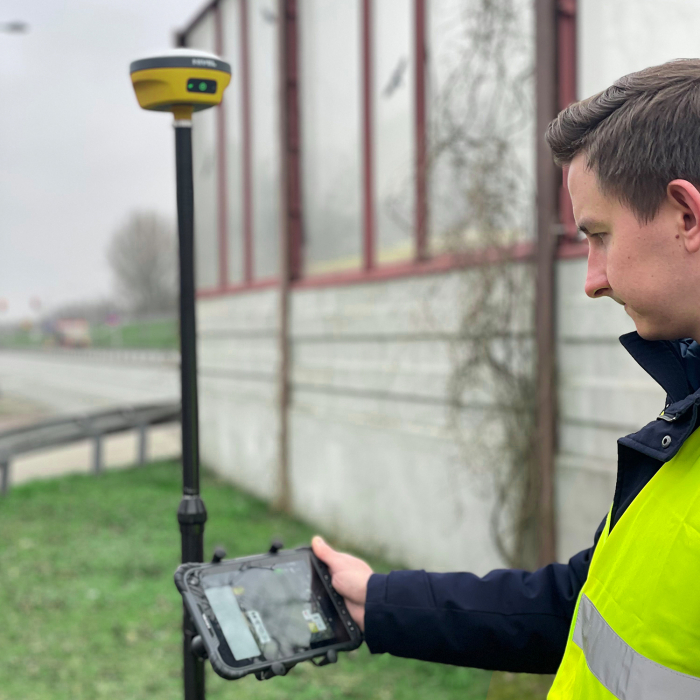

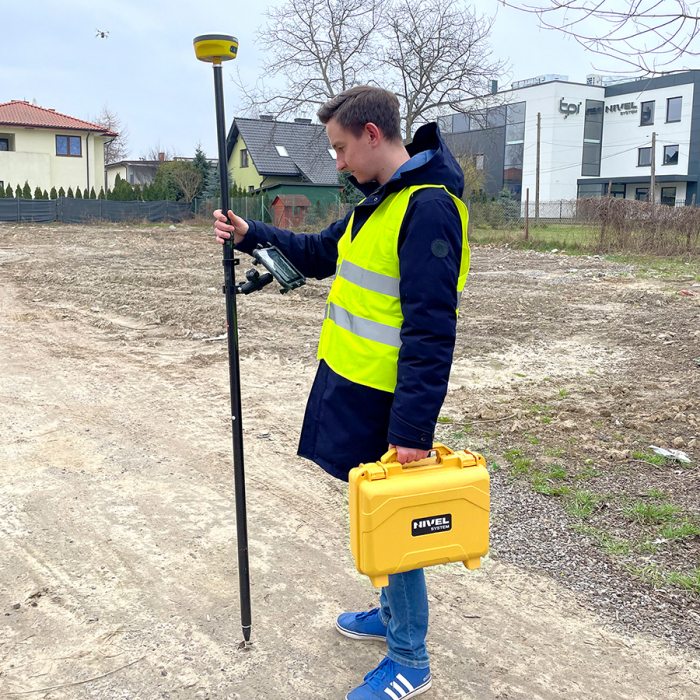

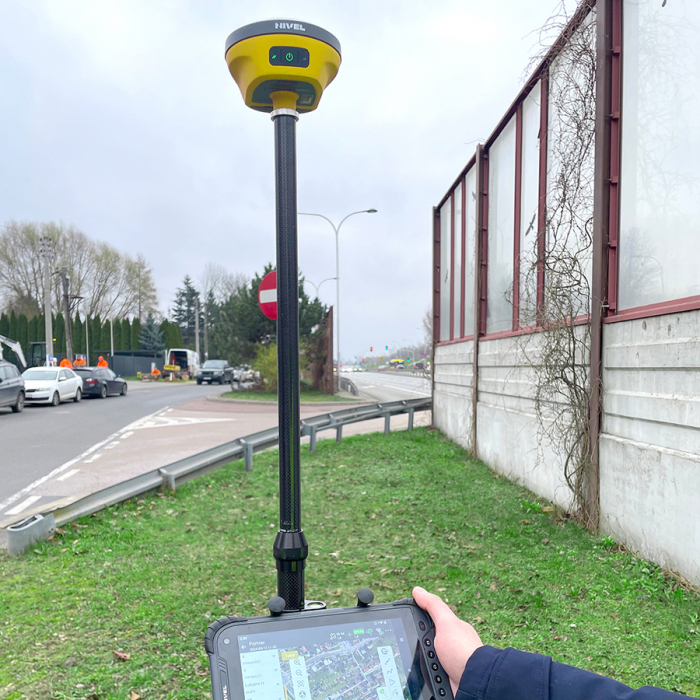

Enjoy the freedom to work without cables. The only tools you need for measurements are: a receiver, a tablet, and a pole.
	Nsurv Software, easy to use. Supports CAD projects (e.g., DXF, DWG) and 3D terrain models (DTM).

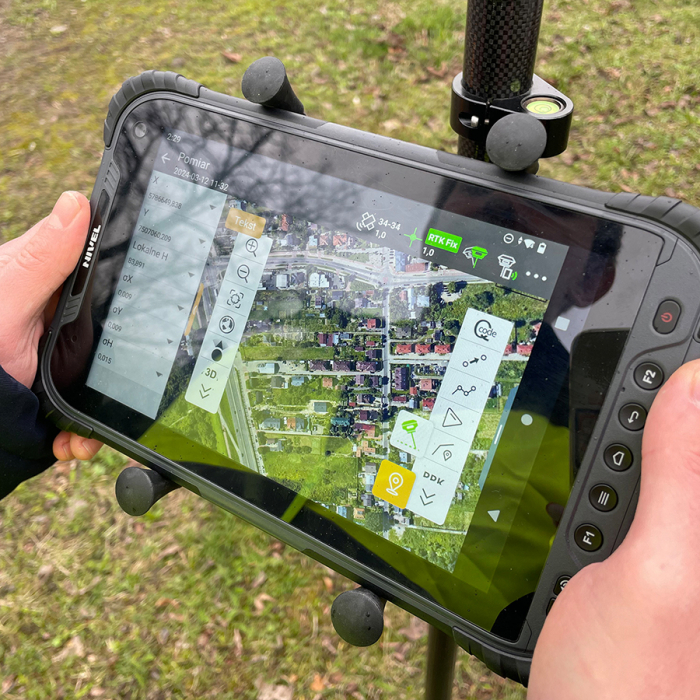

The latest NT-1024 tablet for operating the receiver, with a high-speed 4G modem and Android operating system. Fully utilize the mobile system’s capabilities - store data in the cloud.

Nivel System GNSS Receiver is the Solution for Every Field: Construction, Geodesy

Point 3 offers the possibility to verify measurements, mark points, or project newly constructed objectives, regardless of the field of activity. The Nivel System receiver provides easy, do-it-yourself measurement, and all results can be viewed in real-time.

In a simple and clear way, you will have the certainty that construction works are proceeding according to plans, for example, that the curb will be placed in the right spot. It is also useful for checking the route of pipes and cables before starting excavations. Doing earthworks? Perform a precise GPS measurement of the completed works and thus independently resolve the project.

The Nsurv measurement software has been optimized for full compatibility with other available solutions in the construction field. Due to its ability to share files in various formats, users can integrate our tool with other systems without issues, facilitating cooperation and increasing efficiency.
This flexibility allows perfect synchronization of data and information exchange between different platforms, providing comprehensive support for topographic needs in the construction industry.

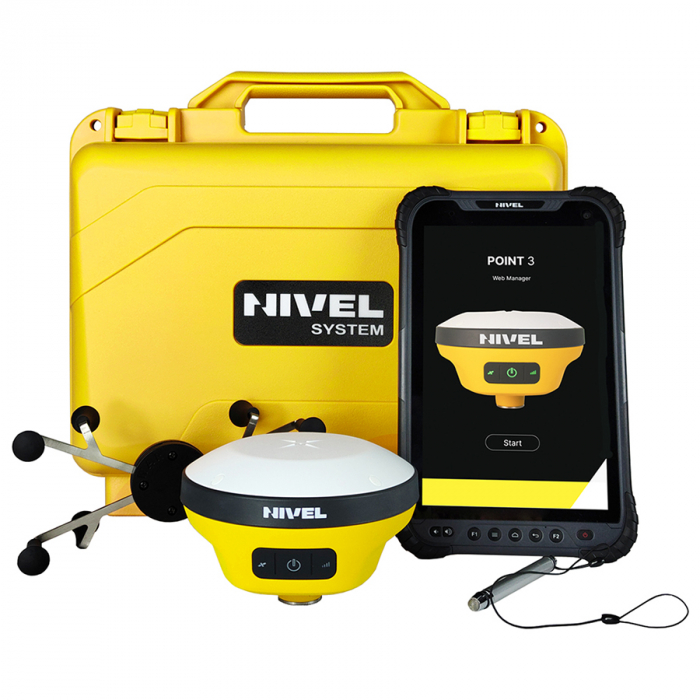

The Package Includes:

• Nivel System Point 3 – receiver – 1 unit.
• NT-1024 Tablet – 1 unit.
• Pole mount – 1 unit.
• Nsurv Software – for tablet – 1 unit.
• Multiport USB charger – 1 unit.
• USB-C cables
• Removable battery – for tablet – 1 unit.
• Pole – choice from multiple models – 1 unit.
• Carrying case – small, lightweight, in which the receiver, tablet, touch pen, and chargers are stored – 1 unit.
• Digital user manual – 1 unit.
• Receiver certificate – 1 unit.

Semnale Urmarite: GPS: L1 / L2 / L5 / L2C; GLONASS: L1 / L2 / L3; Galileo: E1 / E5 AltBOC / E5a / E5b / E6; Beidou: B1 / B2 / B3 / B1C / B2a; QZSS: L1 / L2 / L5 / L6; IRNSS: L5; SBAS: L1 / L5; L-Band: receptia corectii

Numar canale: 1408

Tehnologie: Sistem inertial IMU 3D (inclinometru); Nivelă electronica; Antena GNSS (3D Air a doua generatie); Tehnologie de reducere multipath; Sistem Hi-FIX; Modem radio UHF de 2W; Mod de masurare: RTK/VRS/Stati

Frecventa De Actualizare A Pozitiei: 1Hz-20Hz

Precizia Determinarii Pozitiei In Modul Rtn: Orizontala 8 mm + 0,5 ppm RMS; Orizontala 15 mm + 0,5 ppm RMS

Frecventa de operare: NFC, WiFi 802.11a / b / g / n, Bluetooth 4.2/2.1+EDR, 2.4GHz, eSIM (optional)

Porturi: 1xUSB-C, SMA (modem UHF), eSIM (optional)

Memorie Interna: 8GB

Formate De Patch-Uri Acceptate: Formate de patch-uri acceptate

Temperatura functionare: -30℃--＋70℃

Standard de protectie: IP67

Greutate: 0,8 kg (cu baterie)

Dimensiuni: 132 x 67

Specificatii Baterie: Li−ion 7,4V 6800mAh

Timp De Functionare: In modul static: 15 ore; In modul RTK / RTN: 12 ore

Incarcare: ncarcare rapida de la un incarcator auto, port USB, powerbank, priza 230V

Modem Radio Uhf: 0,5W-2W (reglabil), raza de actiune de pana la 8 km, suport pentru protocoale: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SATEL-3AS, etc.

Management: Android 13.0

Procesor: 2.0GHz, 8 core high-speed processor

Memorie: RAM 6GB; ROM 128GB; Card SD suplimentar 256 GB

Rezolutie afisare: 1280×800, lizibil in lumina soarelui

Afisaj: Display de 8 inch, ecran tactil

Rezolutie camera: Camera foto din spate de 16 M pixeli; Camera frontala de 8 M pixeli; Autofocus; Blitz LED

Senzori Incorporati: L-sensor (Compatible Design); G-sensor; Giroscop; E-Compass

USB: USB 2.0, Tip C, functie OTG

Sim: Nano SIM

Wireless: IEEE 802.11 a/b/g/n/ac/e/i/r (Dual Band 2.4 & 5GHz)

Bluetooth: Bluetooth 5.1, BLE

Nfc: DA
